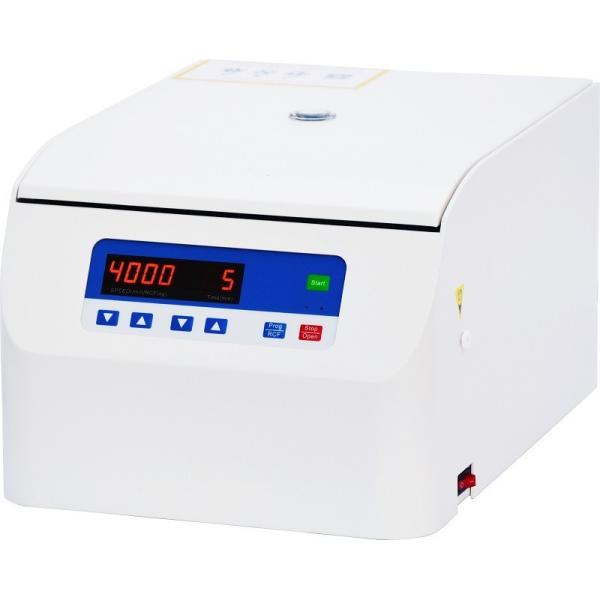

Tabletop Low Speed Vertical Cell Smear Centrifuge
Product Details
|
| 4000 | Maximum Speed |
| 1735xg | Maximum RCF |
| 12 cell slide clips | Maximum Capacity |
| ≦55dB(A) | Noise Level(dBA) |
- 12 samples can be made in 5 minutes.
- Samples taken by the cervical brush. The impurities are separated by gradient centrifugation. Then make the effective diagnostic components (cells and bacteria) into flat uniform layer without overlapping by centrifuge.
- The ultra thin layer absorbed on glass slide for microscope examination or computer reading.
|
Specifications
| Speed range(rpm) | 0-4000rpm adjustable | RCF range (xg) | 0-1735xg adjustable |
| Max Capacity(ml) | 12 cell slide clips | Noise(dBA) | ≦55dB(A) |
| Control | Microprocessor control | Motor | Inverter motor direct drive |
| Time Range | 0-99min | Dimension(mm) | 440*400*230mm |
| Power supply | AC220V,50HZ,5A, 60W | Net weight(without rotor) | 18KG |
Matched Rotor
| No. | Rotor | Capacity | Max. speed | Max. RCF | Note |
| NO.1
| Swing rotor | 12 cell slide clips | 4000r/min | 1735xg | Round disc vertical rotor |
Description
The Cytospin Cell Smear Centrifuge XJ-8 offers impressive features for efficient cell processing.
The Cell Smear Centrifuge XJ-8 streamlines the production of thin layers for cervical cells, pleural effusion cells, cerebrospinal cells, bronchial lavage fluid cells, needle aspirating cells, and sputum cells.
Utilizing samples collected with a cervical brush, this centrifuge employs gradient centrifugation to separate impurities.
The effective diagnostic components, cells, and bacteria are then arranged into a flat, uniform layer without overlap. This ultra-thin layer adheres to a glass slide for microscopic examination or computer analysis. Remarkably, 12 samples can be processed in just 5 minutes. Simple to operate and environmentally friendly, this centrifuge ensures an even cell layer against a clear background.
Designed for applications in pathology, hematology, microbiology, and biological research, the Cell Smear Centrifuge is a vital tool for concentrating cells from liquid samples onto microscope slides. Its versatility extends to various specimen types, including fine needle aspirations, cerebrospinal fluid, serous fluid, synovial fluid, and urine.
Features
- Speed range up to 3500 r/min
- Max RCF: 1328xg, accommodating 12 cell slide clips
- Microprocessor control and flexible shaft drive system ensure smooth, low-vibration, and quiet operation
- Equipped with frequency conversion motor drive and a user-friendly touch color large screen display
- Produces 12 samples in just 5 minutes, ensuring a pollution-free process and even cell layers against a clear background
- "Mute" patented technology ensures quiet operation, with noise levels less than 55 decibels
- Automatic rpm/rcf conversion for accurate processing
- Complies with international safety regulations, featuring electrical lid interlock and emergency lid-lock release in case of power failure
- Safety protections include electronic door lock, over-speed prevention, and fault auto-diagnosis, ensuring user and machine safety
- LED display shows Speed, Timer, RCF, and Program (Memory) information, and a window on the lid facilitates speed calibration and noise measurement.
WHY CHOOSE US
- Factory-direct sales at competitive prices.
- Premium quality assured with CE & ISO certification.
- Robust OEM & ODM customization capabilities.
- Guaranteed production and on-time delivery.
- Comprehensive after-sales service with complimentary product accessories.
- Backed by 15 years of expertise in R&D and production of medical centrifuge machines.
Our Factory Introduction
We boast a standardized production workshop operated by a dedicated team committed to upholding seriousness and responsibility in every product manufactured. Our R&D division comprises versatile professionals including design engineers, technology specialists, qualified experts, and process control managers. With a stringent adherence to our quality process control system, our qualified specialists rigorously oversee the entire production process, encompassing product design, research and development, testing, production, quality inspection, and packaging.
Packaging & Shipping
Our product packaging has a long-standing track record of reliability. Typically, we utilize plywood boxes or cartons with trays, chosen based on the weight and size of the goods. However, we're flexible and open to accommodating your preferred packaging option.
After-Sale WARRANTY
