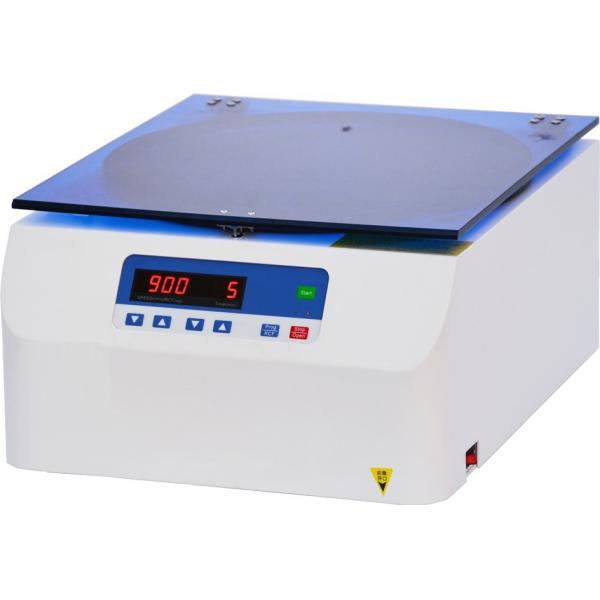

Benchtop Cytocentriuge Cytospin Cell Smear Centrifuge
Product Details
 | 2000 | Maximum Speed |
| 230xg | Maximum RCF |
| 12 cell slide clips | Maximum Capacity |
| ≦55dB(A) | Noise Level(dBA) |
- 12 samples can be made in 5 minutes.
- Cell layer made even with clear background.Samples taken by the cervical brush.The impurities are separated by gradient centrifugation.
|
| Cell Smear Centrifuge/cytocentrifuge/ cytospin, can be used to transfer any sedimentable particles from liquid suspension onto a microscope slide so that they can be stained and examined, but is primarily used to transfer biological cells. It is widely used in clinical medicine and biological research. The literature of clinical applications is extensive and includes such specimens as cerebrospinal fluid, synovial fluid, urine, fine needle aspirates, and a variety of body fluid and lavage samples. |
Specifications:
| Speed range(rpm) | 0-2000rpm adjustable | Noise(dBA) | ≦55 dB(A) |
| Control | Microprocessor control | Motor | Inverter motor direct drive |
| Max Capacity(ml) | 12 cell slide clips | Height of Cell Slide Clips | 50mm |
| Time Range | 0-99min | Dimension(mm) | 440*400*230mm |
| RCF range (xg) | 0-230xg adjustable | Net weight(without rotor) | 22KG |
| Power supply | AC220V,50HZ,5A,150W |
Matched Rotor
| No. | Rotor | Capacity | Max. speed | Max. RCF | Note |
| NO.1
| Swing rotor | 12 cell slide clips | 2000r/min | 230xg | Swing rotor of settlement type |
Description
Samples collected through cervical brushing are separated from impurities through gradient centrifugation. The effective diagnostic components (cells and bacteria) are then processed into a flat, uniform layer without overlapping using XJ-6 Cell Smear centrifuge. This ultra-thin layer is absorbed onto glass slides for examination under a microscope or computer reading. Twelve samples can be prepared within 5 minutes. It's user-friendly, pollution-free, and ensures an even cell layer even against a clear background.
Features
- The centrifuge features a metal housing, metal lid, and stainless steel centrifuge chamber, all autoclave-able and resistant to detergents and disinfection liquids.
- Controlled by a microprocessor with a frequency conversion A.C. motor drive for precision operation.
- The LCD display shows various parameters such as speed, timer, RCF, rotor programs (memory), acceleration, deceleration information, and error codes.
- To ensure a secure seal, the centrifuge is designed with a double-layer sealing ring for both the lid and the instrument.
- Enhanced bio-safety measures include a gas-tight rotating head sterilizable at high temperatures and a centrifugal cavity with ultraviolet sterilization function. The centrifuge enters sterilization mode upon startup.
